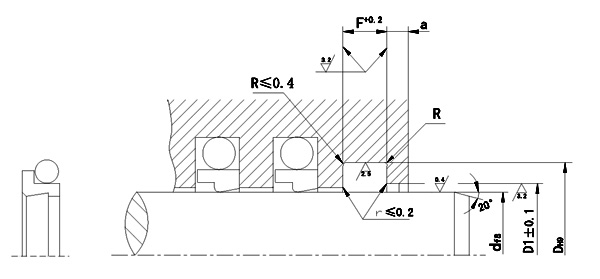

| 規(guī)格及溝槽尺寸 | |||||
| d | D | F | R | D1 | a min |
| 20 | 27.6 | 4.2 | 0.8 | 21 | 3 |
| 22 | 29.6 | 23 | |||
| 24 | 31.6 | 25 | |||
| 25 | 32.6 | 26 | |||
| 28 | 35.6 | 29 | |||
| 30 | 37.6 | 31 | |||
| 32 | 39.6 | 33 | |||
| 35 | 42.6 | 36 | |||
| 36 | 43.6 | 37 | |||
| 38 | 45.6 | 39 | |||
| 40 | 48.8 | 6.3 | 41.5 | ||
| 42 | 50.8 | 43.5 | |||
| 45 | 53.8 | 46.5 | |||
| 48 | 56.8 | 49.5 | |||
| 50 | 58.8 | 51.5 | |||
| 52 | 60.8 | 53.5 | |||
| 55 | 63.8 | 56.5 | |||
| 60 | 68.8 | 61.5 | |||
| 65 | 73.8 | 66.5 | |||
| 68 | 76.8 | 69.5 | |||
| 70 | 82.2 | 8.1 | 1.5 | 72 | 4 |
| 75 | 87.2 | 77 | |||
| 80 | 92.2 | 82 | |||
| 85 | 97.2 | 87 | |||
| 90 | 102.2 | 92 | |||
| 92 | 104.2 | 94 | |||
| 95 | 107.2 | 97 | |||
| 100 | 112.2 | 102 | |||
| 105 | 117.2 | 107 | |||
| 110 | 122.2 | 112 | |||
| 115 | 127.2 | 117 | |||
| 120 | 132.2 | 122 | |||
| 125 | 137.2 | 127 | |||
| 130 | 142.2 | 132 | |||
| 135 | 147.2 | 137 | |||
| 140 | 156 | 9.5 | 142.5 | 5 | |
| 150 | 166 | 152.5 | |||
| 160 | 176 | 162.5 | |||
| 170 | 186 | 172.5 | |||
| 180 | 196 | 182.5 | |||
| 200 | 216 | 202.5 | |||
| 205 | 221 | 207.5 | |||
| 210 | 226 | 212.5 | |||
| 220 | 236 | 222.5 | |||
| 230 | 246 | 232.5 | |||
| 235 | 251 | 237.5 | |||
| 240 | 256 | 242.5 | |||
| 250 | 266 | 252.5 | |||
| 260 | 276 | 262.5 | |||
| 270 | 286 | 272.5 | |||
| 280 | 296 | 282.5 | |||
| 290 | 306 | 292.5 | |||
| 300 | 316 | 302.5 | |||
| 310 | 326 | 312.5 | |||
| 320 | 336 | 322.5 | |||
| 350 | 366 | 352.5 | |||
| 360 | 376 | 362.5 | |||
| 370 | 386 | 372.5 | |||
| 390 | 406 | 392.5 | |||
| 400 | 424 | 14 | 402.5 | 8 | |
| 450 | 474 | 452.5 | |||
| 480 | 504 | 482.5 | |||
| 500 | 524 | 502.5 | |||
| 550 | 574 | 552.5 | |||
| 600 | 624 | 602.5 | |||
| 630 | 654 | 632.5 | |||
| 640 | 664 | 642.5 | |||
| 650 | 677.3 | 16 | 2 | 652.5 | 10 |
| 700 | 727.3 | 702.5 | |||
| 750 | 777.3 | 752.5 | |||
| 800 | 827.3 | 802.5 | |||
| 850 | 877.3 | 852.5 | |||
| 900 | 927.3 | 902.5 | |||
